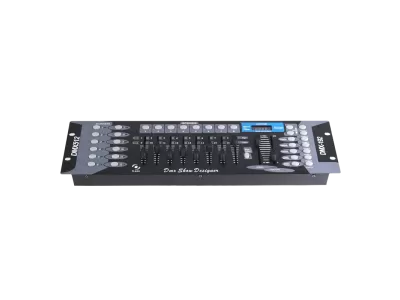

Flash CONTROLLER DMX 384ch v19 (F9000383)
Kontroler 384A DMX CONTROLLER 384ch 2019 to zaawansowane urządzenie do zarządzania oświetleniem, które obsługuje do 24 inteligentnych świateł, z możliwością przypisania 16 kanałów, co łącznie daje 384 kanały. Oferuje 30 banków chase, z możliwością zapisania 8 scen, oraz 6 chase, z maksymalnie 24 scenami w każdej. Umożliwia nagrywanie do 6 chase z regulowanym czasem przenikania i prędkością.Urządzenie wyposażone jest w 16 suwaków, co zapewnia precyzyjną kontrolę nad kanałami. Obsługuje kontrolę MIDI dla banków, chase oraz poziomów oświetlenia. Wbudowany mikrofon pozwala na pracę w trybie muzycznym, a program automatyczny jest sterowany suwakami.Kontroler posiada wejście/wyjście DMX 3-pin XLR oraz zasilanie 9V DC. Jest zasilany zewnętrznym zasilaczem.
Rodzaj obudowy Stal
Rodzaj obudowy ABS
Mocowanie Zintegrowane
Kolor obudowy Czarny
Długość [cm] 52
Szerokość [cm] 19
Wysokość [cm] 7
Waga [kg] 2,6
Zawartość Opakowania
Rodzaj Opakowania Karton

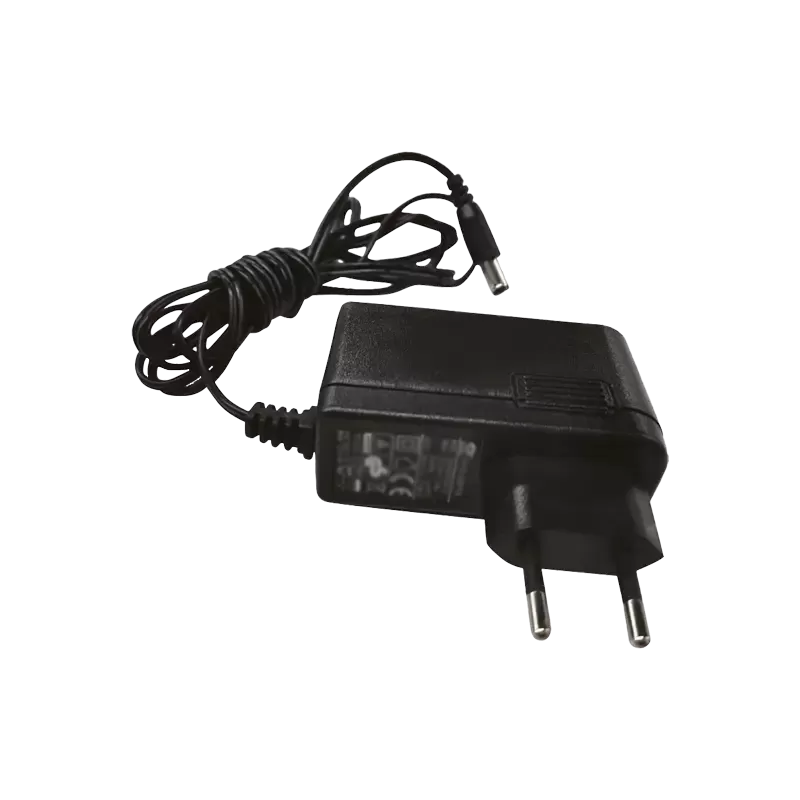

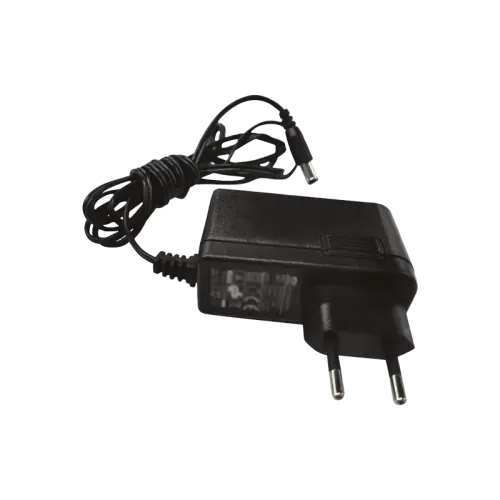

Okablowanie Zasilacz
Item Button or Fader Function
1 Scanner select button Fixture Selection
2 Scanner indicators LEDs Indicates the fixtures currently selected
3 Scene select button universal bump button representing scene Location for storage and selection
4 Channel faders For adjusting DMX values, Ch 1-16 can be adjusted immediately after pressing the respective scanner Select button
5 Program button Used to enter programming mode
6 Music/Bank Copy button Used to activate Music mode and as the copy Command during programming
7 LED display window status window display pertinent operational data
8 Mode indicator LEDs Provides operating mode status, (manual, Music, or auto)
9 Bank Up button Function button to traverse Scene/Steps in Banks or chases
10 Bank Down button Function button to traverse Scene/Steps in Banks or chases
11 Tap display button Sets the chase speed by tapping, and toggles between Values and percentages.
12 Blackout button Sets the shutter or dimmer value of all fixtures to „0" causes all light Output to case
13 Midi/ADD button Activates MIDI external control and is also used to confirm the record/save process
14 Auto/Del button Used to activate the Auto mode and as the delete function key during programming
15 Chaser buttons Chase memory 1-6
16 Speed fader This will adjust the hold time of a scene or a step Within a chase
17 Fade-time fader Also considered a cross-fade, sets the interval Time between pages of control
18 Page Select button In manual mode, press to toggle between pages of control
21 MIDI input port For external triggering of Banks and Chases using a MIDI device
22 DMX output connector DMX control signal
23 DC input jack Main power feed
24 USB lamp socket
25 ON/OFF Power Switch Turns the controller on and off
